gt530a SMALL

96.5% Efficiency

Eutectic Cast Iron with Economizer option

Low water return : GT530A/AE Plus

Input Range 3749 to 8190 MBH

Commercial Gas/OiL/ Dual fuel

Economizer Top Position

New Picture (49)

Economizer Side by Side Position

New Picture (50)

Low Water Return

Maximizes Energy Savings

The GT 530AE Plus Series of Eutectic Cast Iron boilers incorporates a heat exchanger manufactured from TP316L stainless steel to achieve one of the highest efficiencies in the hydronic boiler market. The stainless steel economizer is specifically designed for the GT 530AE Plus heat exchanger to assure the highest performance and longest life expectancy of a De Dietrich boiler. The ability to have #2 fuel oil and/or propane as a backup fuel is a feature that enables end users the flexibility of fuel choice without compromising performance. With firing rates up to 8,190 MBH, the GT 530AE Plus is one of the largest high efficiency boilers in the hydronic heating market.

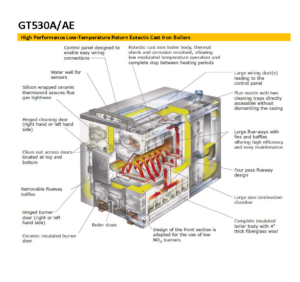

The G530AE Plus is a Four Pass Design with a generous combustion chamber and horizontal flue passes with fins. The heat transfer is enhanced by the fins and eutectic cast iron baffles. This body design  assures:

  •   CSA Certified Efficiency up to 96.5% on gas and 94.5% on oil.
  •   Low water pressure drops
  •   Low noise level
  •   High thermal efficiency and heat transfer

Low Water Outlet Temperature down to 105°F with indoor/outdoor reset achieves significant energy savings by reducing stand-by fuel consumption. In addition, it’s not necessary to maintain boiler temperature between the two heating cycles, which further reduces fuel consumption and achieves excellent overall efficiency. Studies show substantial savings over retrofit boilers and over new competitive models.

Easy Cleaningwith Hinged Door for burner and flue access. Doors can be hinged right or left based on your access needs. Boiler is easily cleaned and vacuumed, resulting in lower maintenance costs.

Eutectic Cast Iron boiler body provides exceptional resistance to temperature variations and thermal stress. De Dietrich’s eutectic cast iron is 30% more flexible than any competitive cast iron allowing safe low temperature operation.

Four Inch Insulation featuring reinforced fiberglass wool. De Dietrich Boilers feature double insulation of the boiler front which minimizes heat loss and allows reduced stand-by consumption and improved thermal efficiency.

Control Panel. The control panel supplied is designed for heating applications. The panel is equipped with a boiler thermometer, ON/OFF limit, high limit and manual reset limit. The large size permits it to be integrated easily with third party energy management systems.

Standard Equipment

  •   Eutectic Cast Iron Nipples
  •   Built-in High temperature Limit with Manual Reset
  •   Thermocord Combustion Seal
  •   CSA/CSD-1 Compliant Controls and accessories
  •   Low NOx Burners (optional)
  •   Factory Assembly (optional)
  •   BACnet (optional)
  •   Consult your local De Dietrich representative for a list of available burners.
